16-Point Check (Seiko 11A)

Alright, after some thinking and mulling things over, I have decided that for the remainder of the 16-Point Check project, I want to do individual posts per watch upon their completion. What this means is I am going to be doing quite a few individual posts on each watch. In case you might have missed one, I’ll be putting a list of the individual posts at the end of each entry.

_________________________

WP_20141023_11_27_47_Pro

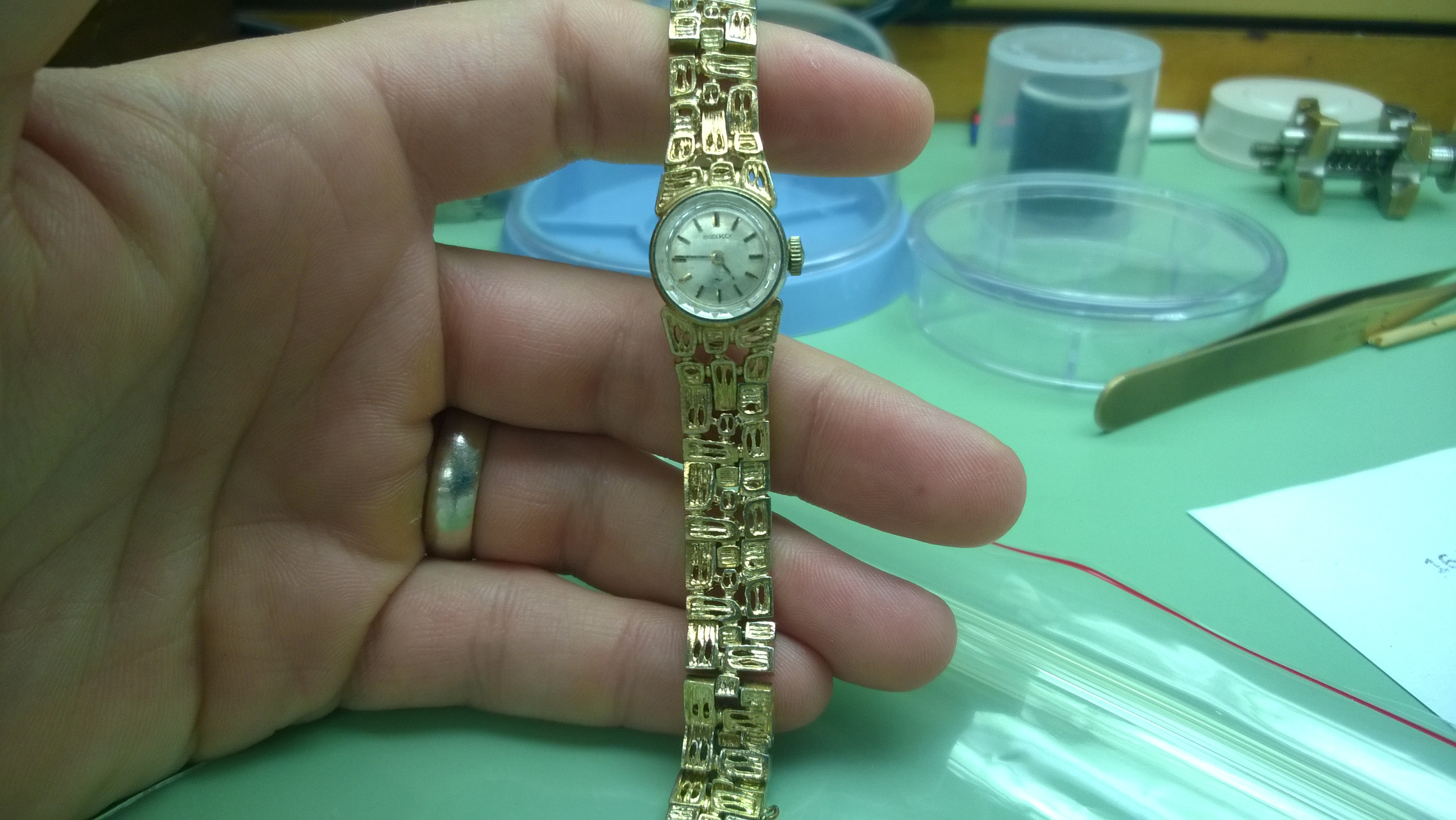

It’s a Seiko! And a ladies watch. And a pin-detent (I’ll explain that in some pictures later). If you take a look in the picture, I got a new movement holder! It’s in the background-it’s a vintage L&R holder. I won it in an ebay auction along with a ton of other holders. I’ve got some new tools and things coming in later this week, so I’ll go over all those later next week. The case was dirty, the crystal scratched to heck and back, pitting /dents on the crown, tarnish on the case, etc. It wound, but the lack of second hand didn’t let me know if it was running or not, so I took the movement out of the case.

WP_20141023_12_43_05_Pro

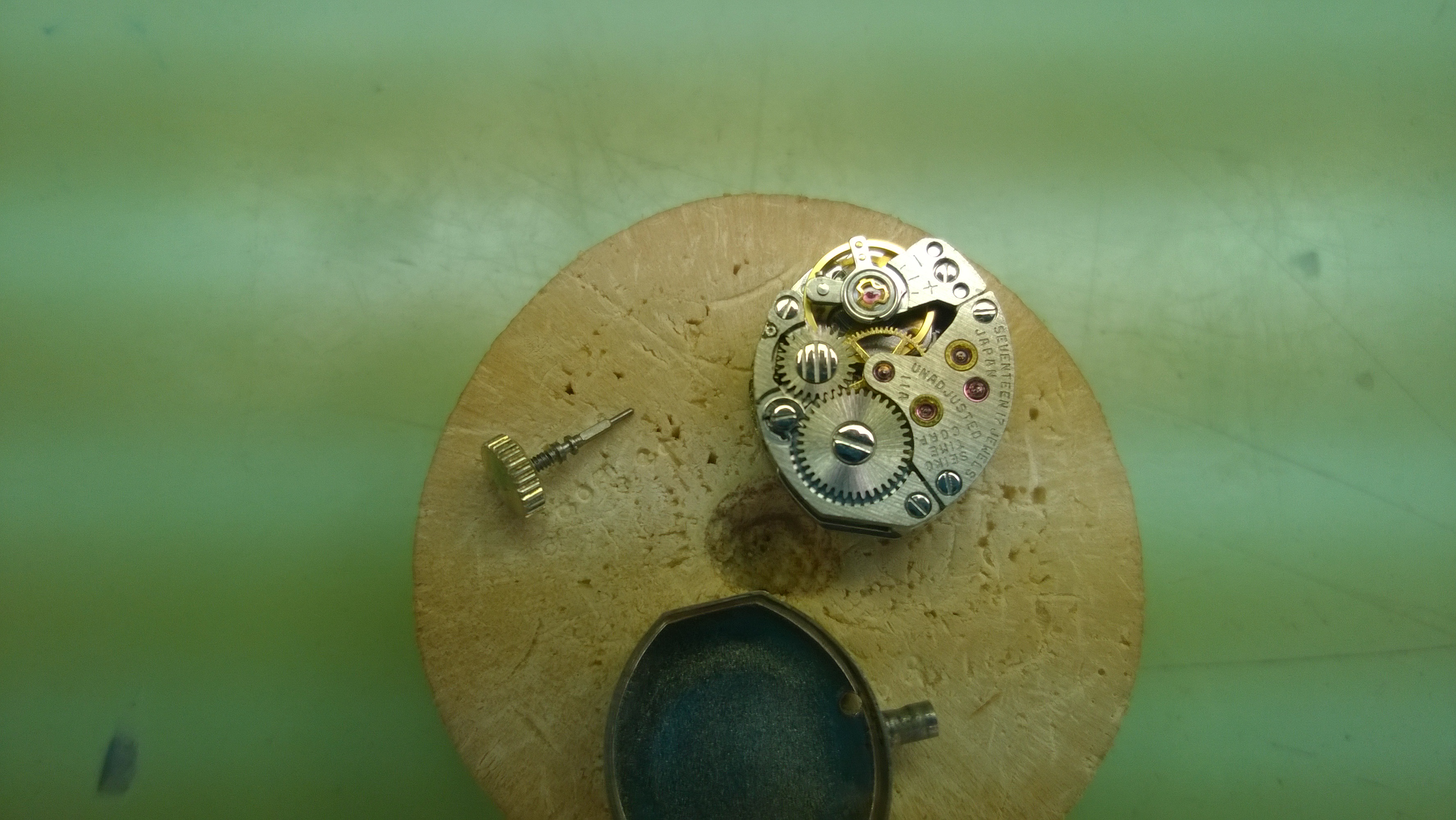

Gear train looked good and the balance was moving nicely. I timed it and it was okay. The oil was in poor condition/non-existent which would possible explain the timing. I removed the balance to check the kickback and it was laughable. There was non and in fact when I turned the crown, the escape wheel was just lazily stuttering around, so I knew that I had at least a mainspring issue.

Checking the dial side was a bit of a shock.

WP_20141023_14_12_06_Pro

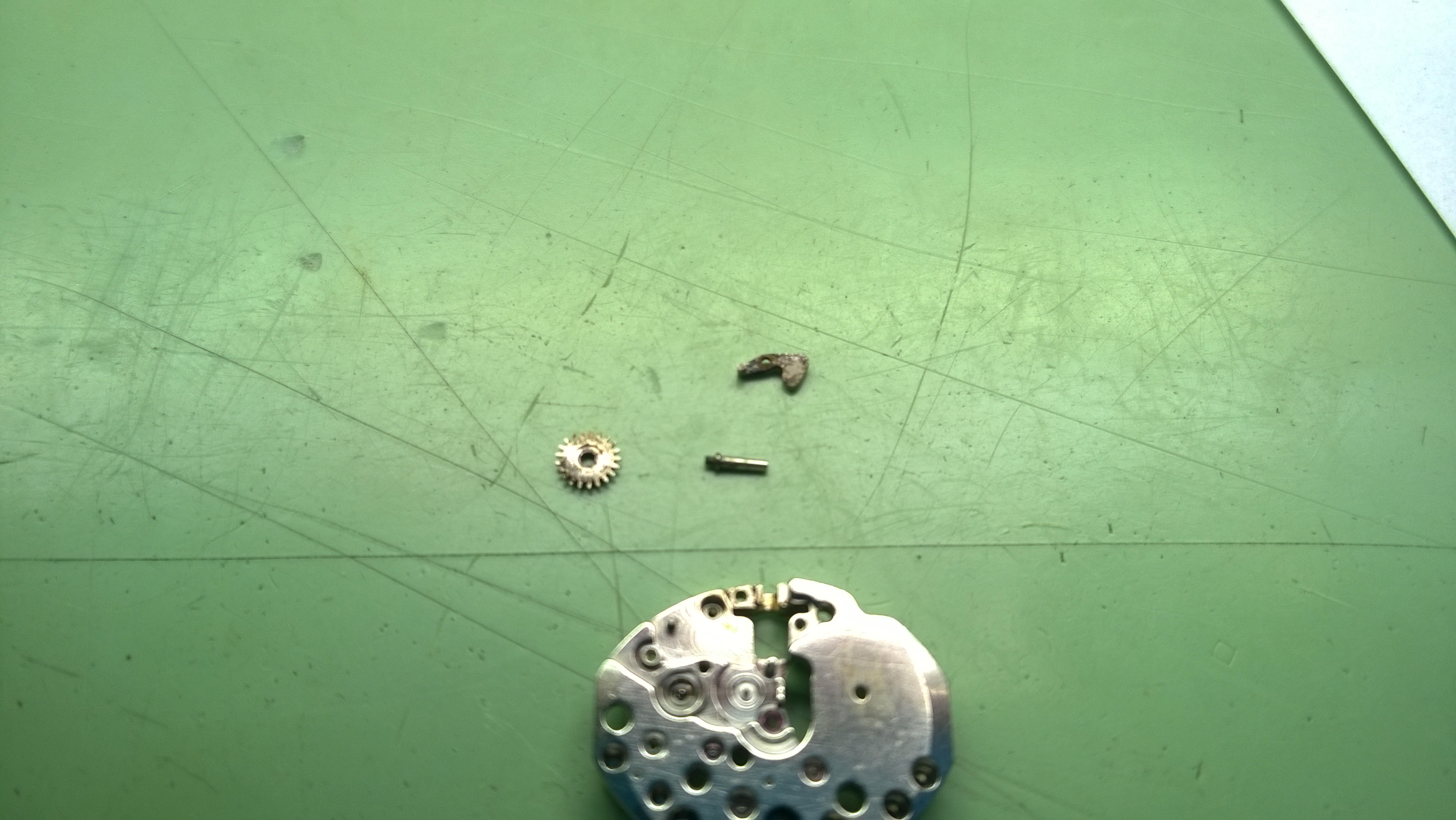

Rust on the winding pinion, detent, and around where all of those hang out in the plate. I took a while with my pre-cleaning procedure (pegwood, rodico and watch paper) to hopefully have some clean parts after the ultrasonic. The two parts that aren’t the plate or winding pinion (wheel) make up the pin-detent. In a lot of watches, the detent is screwed to the the plate (in case you forgot, the detent keeps the stem in place when the stem moves from winding to setting positions). In this watch, instead of it being a screw, it is a pin. It is a two piece part that is a lot easier to install. If you need to remove the stem when the movement is cased up, you just push on the pin and it will move a bit to allow the stem to move. You remember when I mentioned that the watch had no kick-back and that there was a mainspring issue?

WP_20141023_14_25_12_Pro

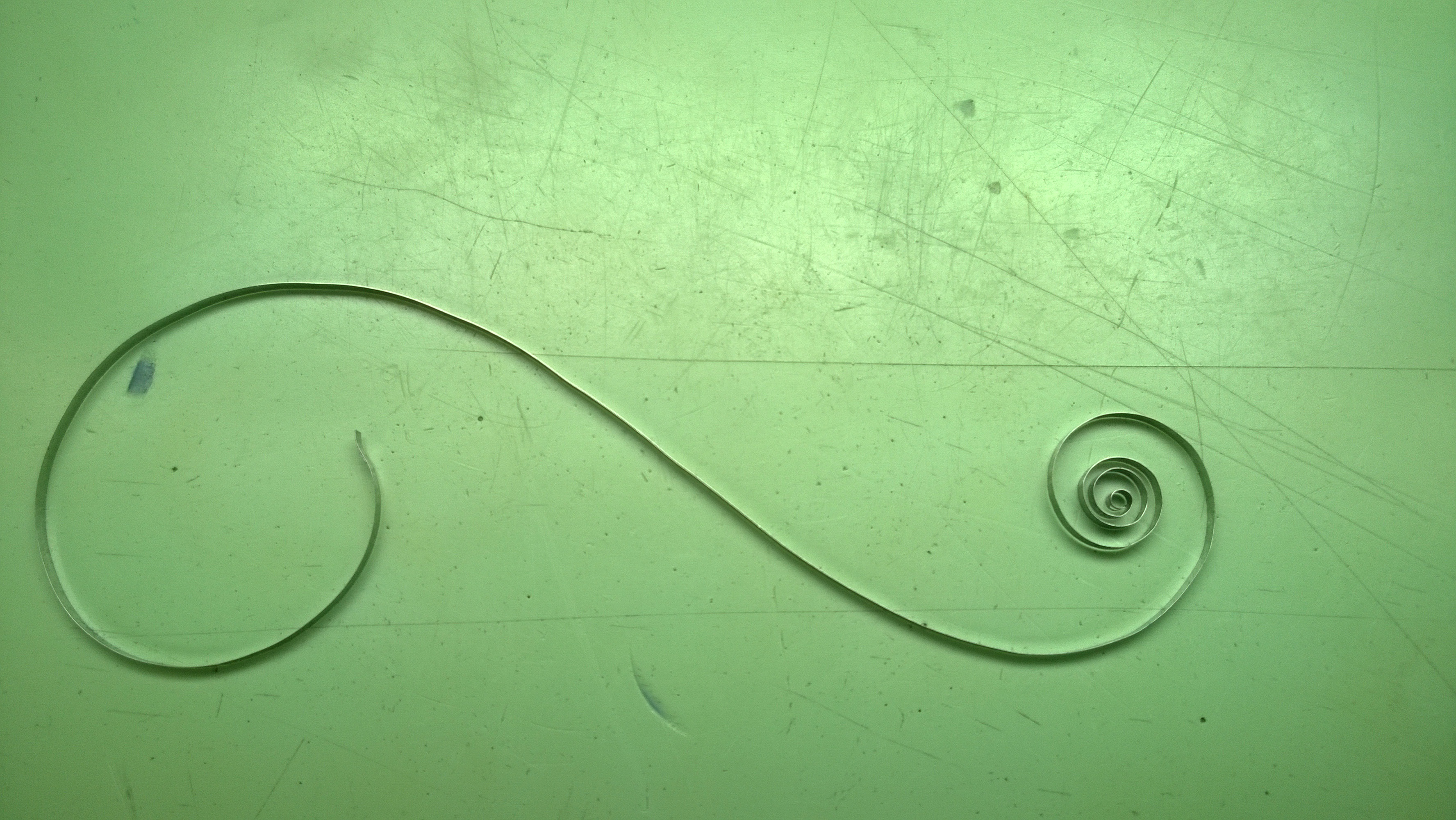

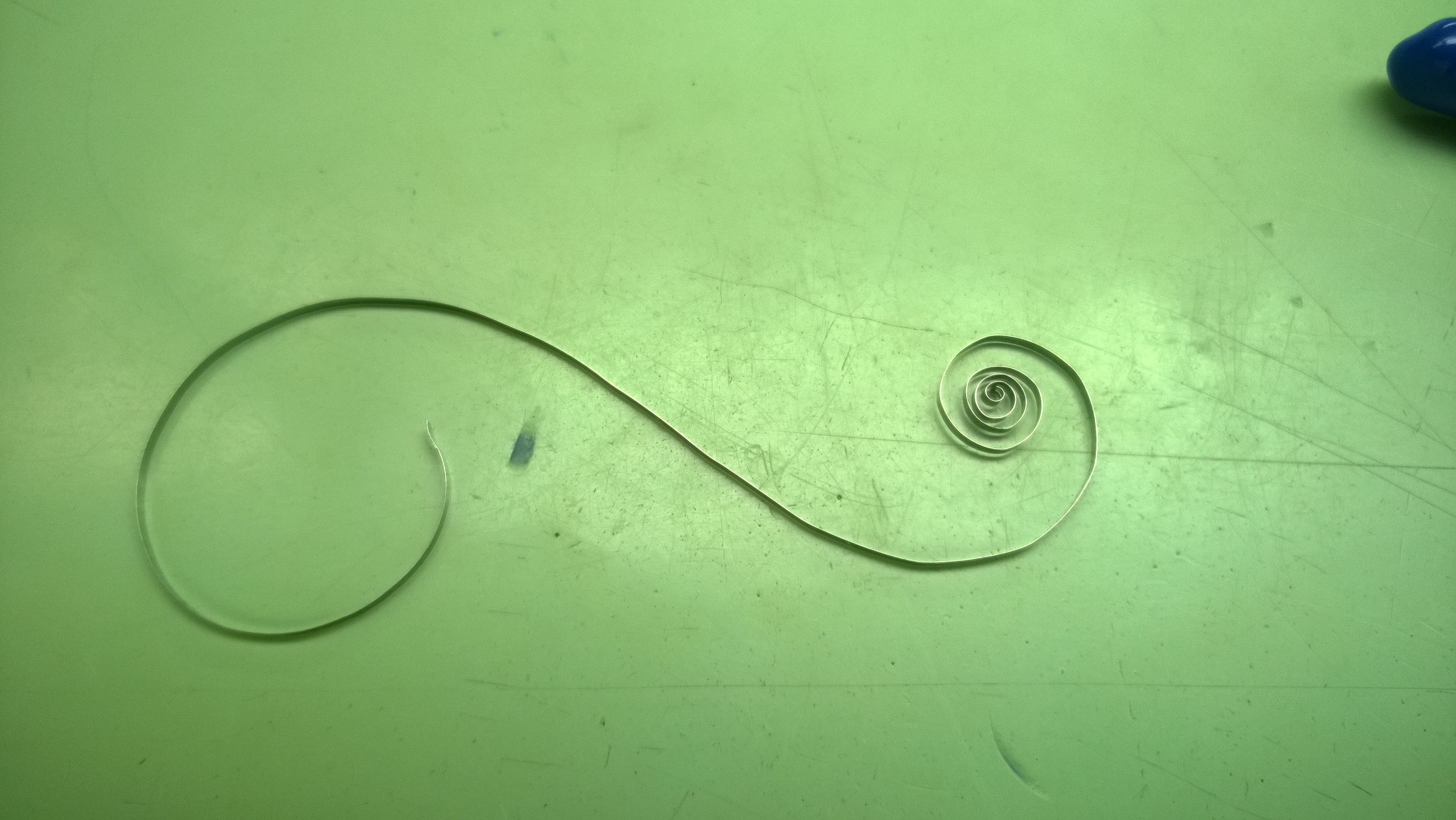

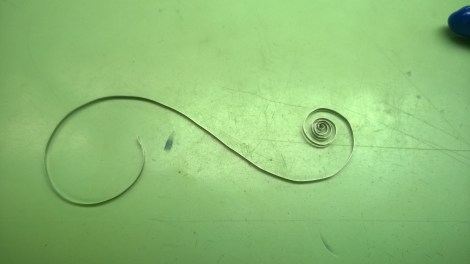

Wow. I really wish I had taken a picture of it when it was in the barrel. It was hard not to laugh. Look at all the kinks that are in that spring. There is one kink near the innermost coil that caused all the bends that you see along the length of the spring. While I was running the movement and parts through the ultrasonic, I worked on the spring with some tweezers/pliers and a bamboo peg (thanks Tim!). I was able to get it to look like this:

WP_20141023_14_53_40_Pro

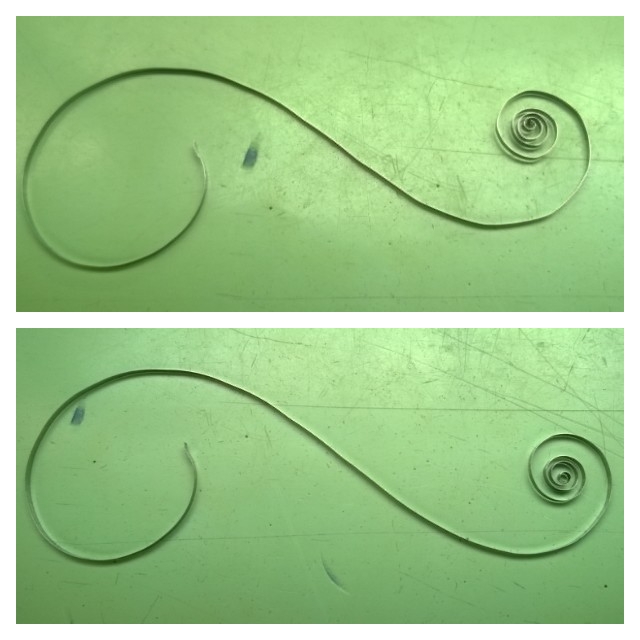

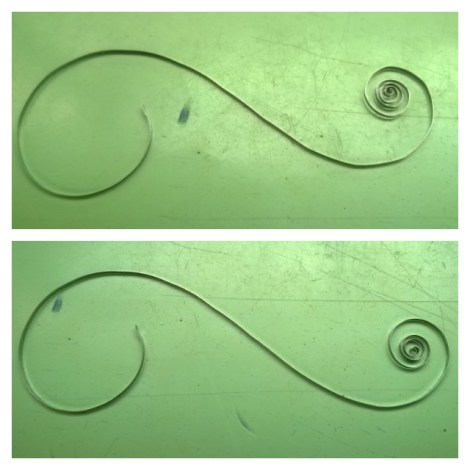

Not too bad. There are still a few smaller bends that I need to take care of, but here is a comparison picture:

6tag_231014-191409

If you click on that, you can see a pretty good idea of what I did. I got the parts out the ultrasonic and some of the rust that I was worried about, but it was still there. Mr. Poye said that there since the rust was more surface rust and not corrosion, the parts were going to work.

Once I got the mainspring back in, I reassembled the movement (doing the proper oiling/greasing), making sure to check the endshake and freedom of movement when I spun the wheels with some pegwood. After being satisfied with their movement, I lubricated the gear train and slid the barrel into place. I gave the barrel a spin and saw the escape wheel whizzing around. I put the keyless works back together and braced myself for the moment of truth. I got some great kickback. A sigh of relief. All that was left was putting the pallet and balance back so I could time it.

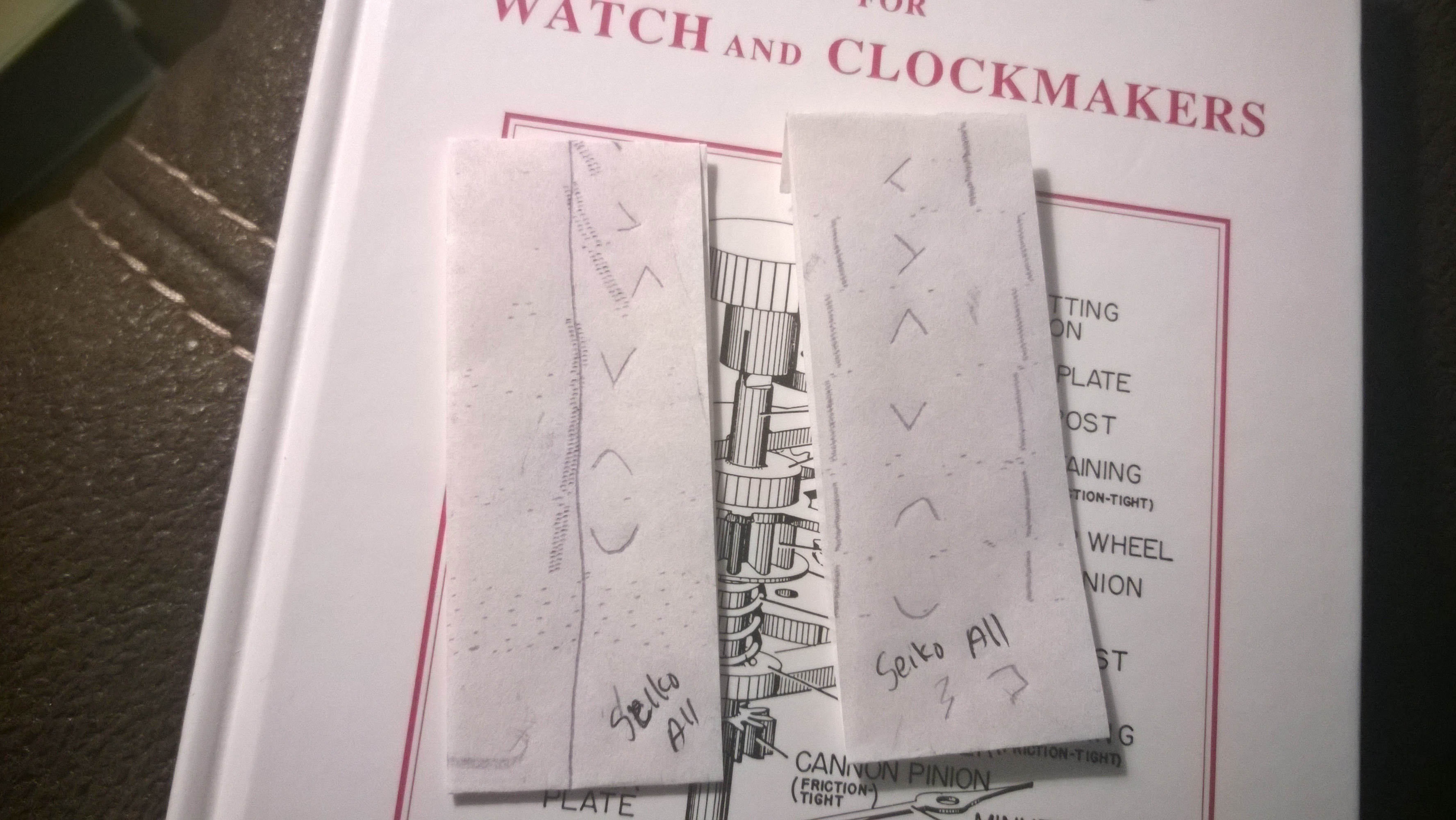

WP_20141115_13_59_55_ProThe tape on the left is the original timing tape that I ran when I got the watch. The tape on the right was after I got it regulated. All in all, very happy with the results.
